Motion Interpolation with OpenCL

Example

Motivation / Prior Art

  • Why? 60 > 24. Panning in movies looks horrible
  • TV features like Motion Boost / TruMotion (controversial)
  • Smooth Video Project (svp-team.com)
  • Video Compression
  • Slow Motion in Smartphones, Adobe Premiere etc.

Overview

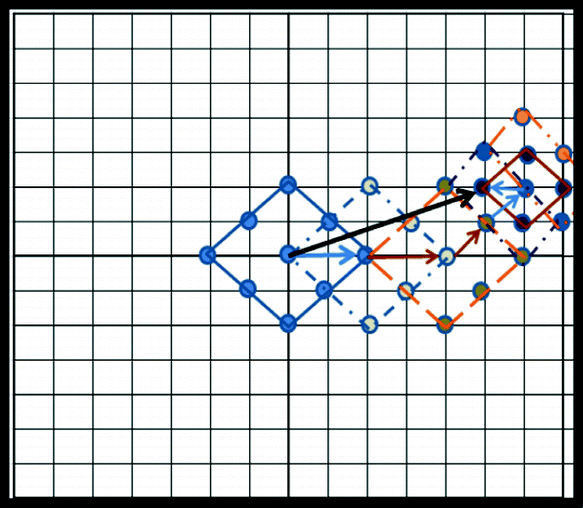

  1. Motion Estimation via Block Matching:

    Find most similar 16x16 pixel block close to current block

  2. Render Frame

    Move by motion vectors and blend blocks

All videos are screen recordings (real time!)

Motion Estimation

For every OpenCL local 2D group:

  • Load a 3x3 grid of 16x16 blocks of both images into local memory
  • Compute the SAD for moving the center block to every possible offset (Sum of absolute differences)
  • Bias for e.g. consistency with neighbourhood
  • Do everything a second time for backwards motion

Motion Estimation Example

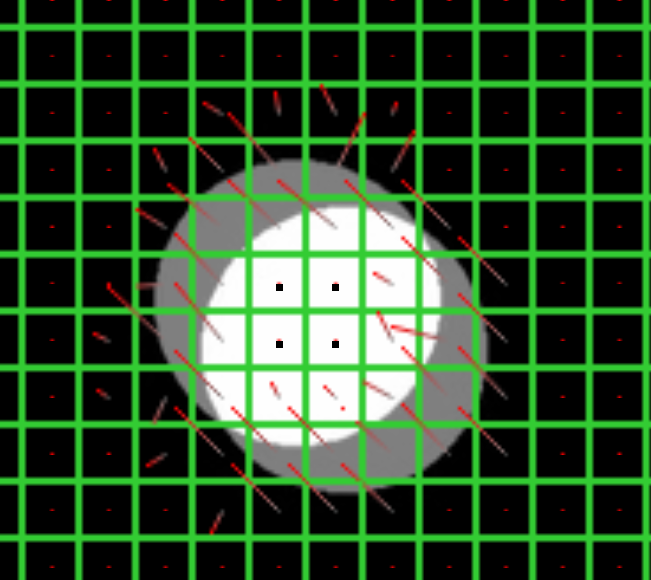

1 iteration

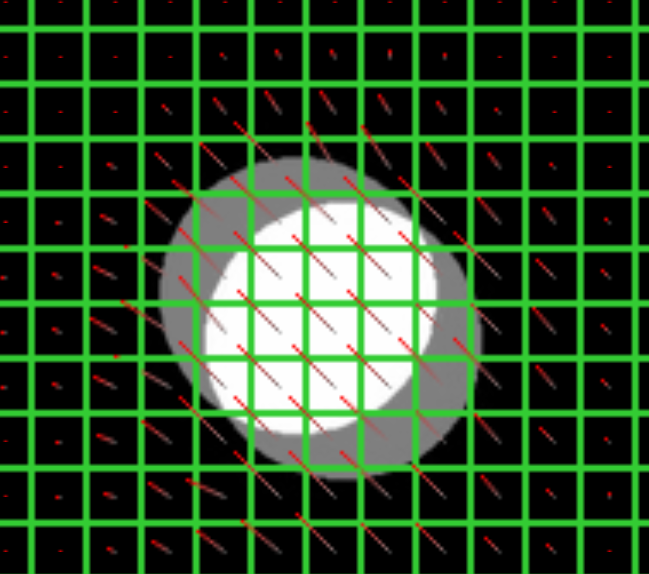

5 iterations

Motion Vectors

Frame Rendering

  1. Shift Motion vectors by themselves by some factor depending on time
  2. For every output pixel, read input pixel shifted by negative motion vector * deltatime
  3. Do this four times (img1 forward, img1 backward, img2 forward, img2 backward)
  4. Blend pixels depending on deltatime and visibility

Shift Forward Motion Vectors

Rendered

Full Debug Output

Movie Example 1 (slowed 50%)

Movie Example 2 (slowed 50%)

Benchmark

Measuring everything between glFinish() and clFinish()
